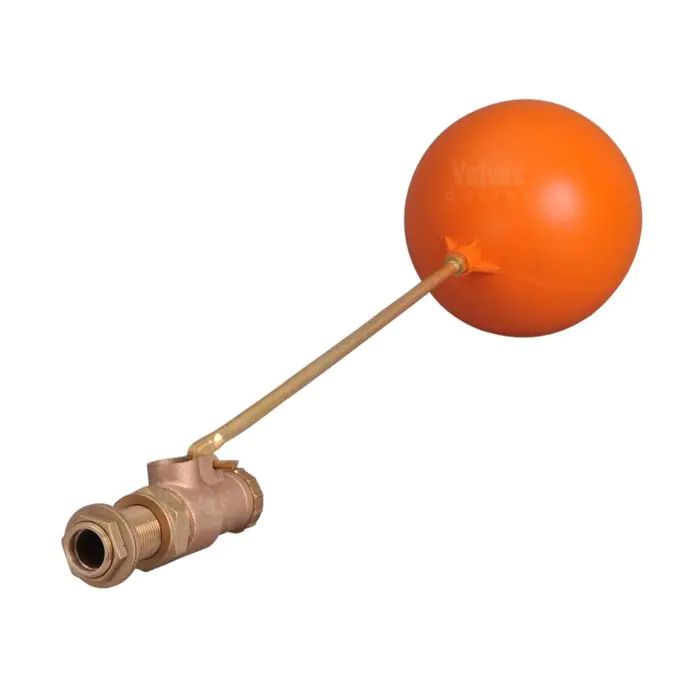

Brass/Bronze Ball Float Valve with Plastic or Copper Float Options
A ball float valve to BS1212/1 offered in Brass (1/2" to 3/4") and Bronze (1" to 2") supplied complete with a pre-sized float in copper or plastic options. Simple "Portsmouth" pattern design with screwed BSP males connection and supplied complete with backnut.
Recommended temperature up to 85°C and a maximum pressure of 10 Bar/g.
This float valve is designed with interchangeable parts to make replacement easy, for simple and cost-effective fluid level control within open tanks and vessels.
Used in general services, water treatment, plumbing and heating applications to control the level of water into water tanks and cisterns.
Key Features:
- Screwed BSP Male
- Valve Sizes: 1/2" to 2"
- Brass Body (1/2" to 3/4")
- Bronze Body (1" to 2")
- Floats Sized to Suit
- Plastic or Copper Float Options
- Recommended Temperature 85°C
- Maximum Pressure: 10 Bar/g
- 1/2" WRAS Approved
- BS1212/1
Floats come pre-sized to suit valve as follows:
| Valve Size |
Float ØD |
| 1/2" |
4 1/2" |
| 3/4" |
6" |
| 1" |
8" |
| 1 1/4" |
10" |
| 1 1/2" |
10" |
| 2" |
12" |
Different float sizes are available on request.
Datasheet:
Brass Ball Float Valve Datasheet
